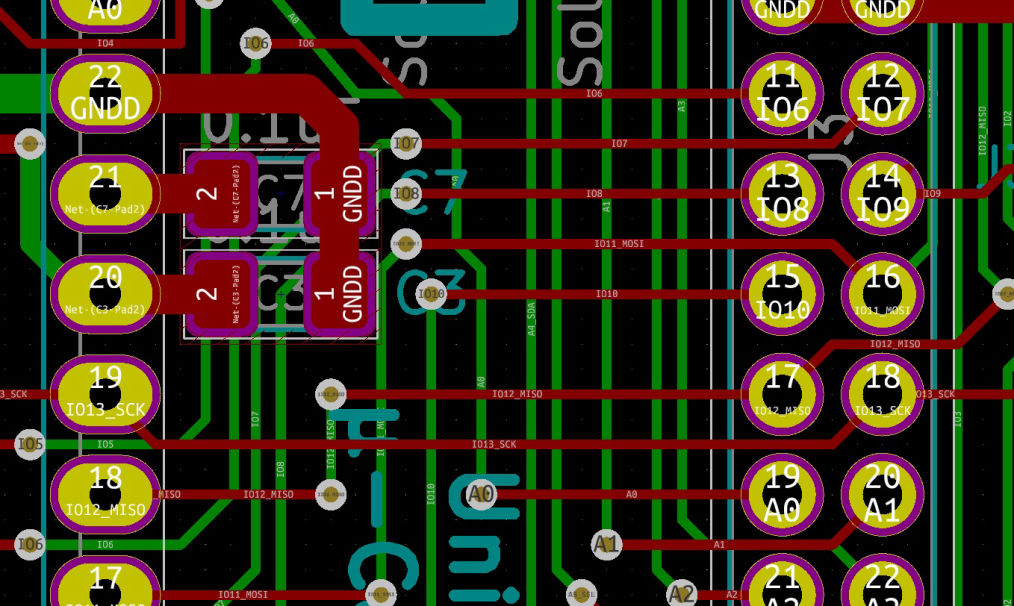

Das dem Schaltungsdesign folgende Leiterplattendesign muss alle Parameter des späteren Betriebs als auch physisch vorgegebene Dimensionen und Schnittstellen berücksichtigen.
Einen Mikrocontroller programmieren zu können, sehe ich als den Zugang zu vielfältigsten Lösungen in vielen Bereichen. Kompakt, schnell und lässt sich unkompliziert in Funktionalität anpassen oder erweitern.
Neugierig die vielfältigen Techniken zu erleben und diese praktisch umzusetzen, erleichtert später das Finden neuer Wege und hilft beim Realisieren größerer Aufgaben.
Aufgabenstellung: Verschiedene vorgefertigte LED Panels mit WS2812B LEDs
über den PIC Mikrocontroller 18F26k20 seriell ansteuern (3-Draht)
(In der MPLAB-X IDE wurden keine vorgefertigte Bibliotheken verwendet)
16x16 LED Panel "LED Chaser";
Pixelbewegung im Bildarray auf LED Reihenfolge umgesetzt.
Eigene Inline-Assemblerroutine zur Ansteuerung verwendet.
4x4 LED Panel "Pulsar"; in Abfolge gesendete Muster
12 LED Ring "Landebefeuerung"; in Abfolge gesendete Muster
Arduino Plattform
Eigene Berechnung des 2D Koordinatenabbildes über den Strahlensatz.
Mit Einfluss eines MEMSIC Sensors.
Arduino Plattform & TFT mit resistivem Touchscreen.
Verwendung der vorhandenen Grafik-/ SD card- Bibliotheken,

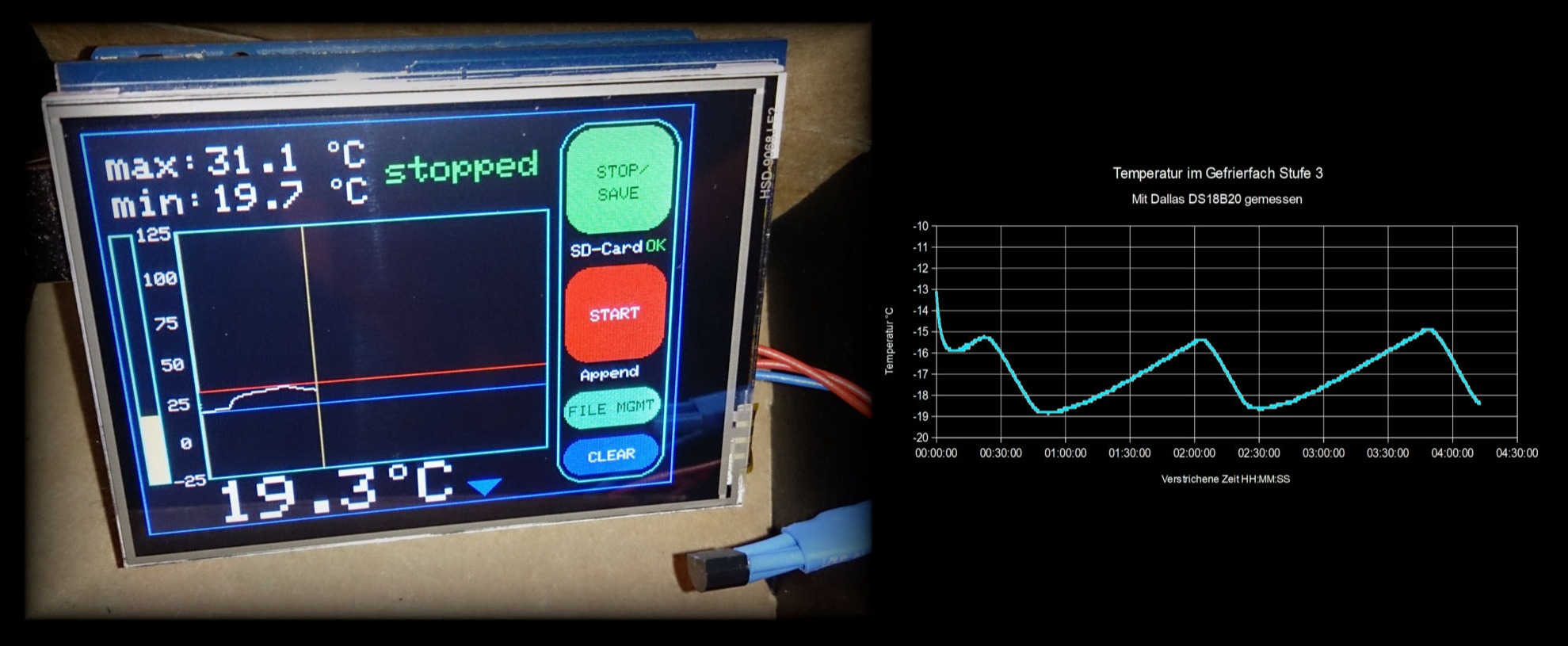

eigene DS18B20 Sensorabfrage und grafische Aufbereitung.
Import im PC über CSV Datei.
Where to put a small bottle and cup the same time in your existing outdoor chair - when there's only one bracket in one armrest?

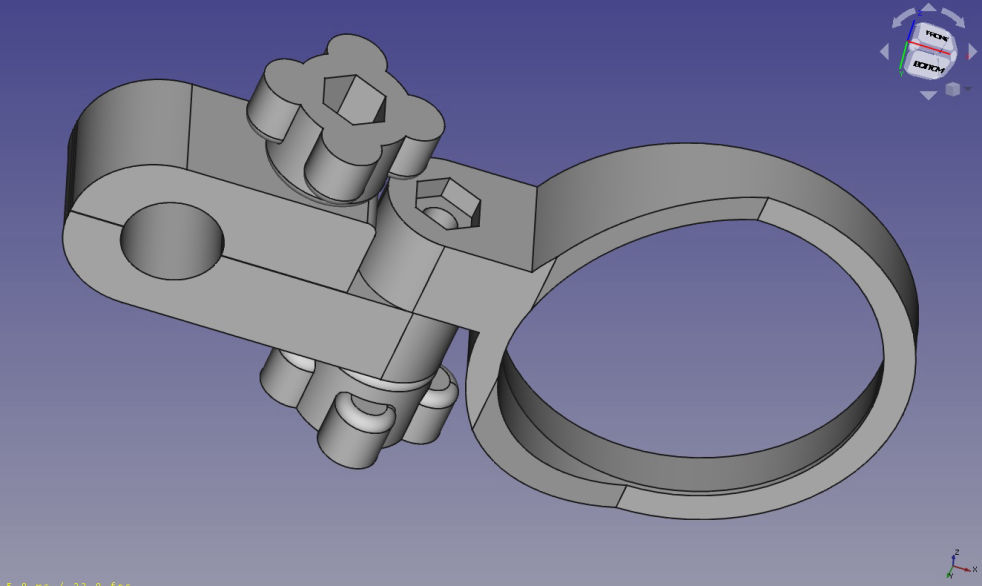

Creation of an additional simple cup holder for 3D Printing. It extends the storage capabilities of almost every of those chairs, without modifying the chair itself.
Plastic parts don't last forever.
The upper bearing of an old cupboard's corner carousel was broken.
Solution

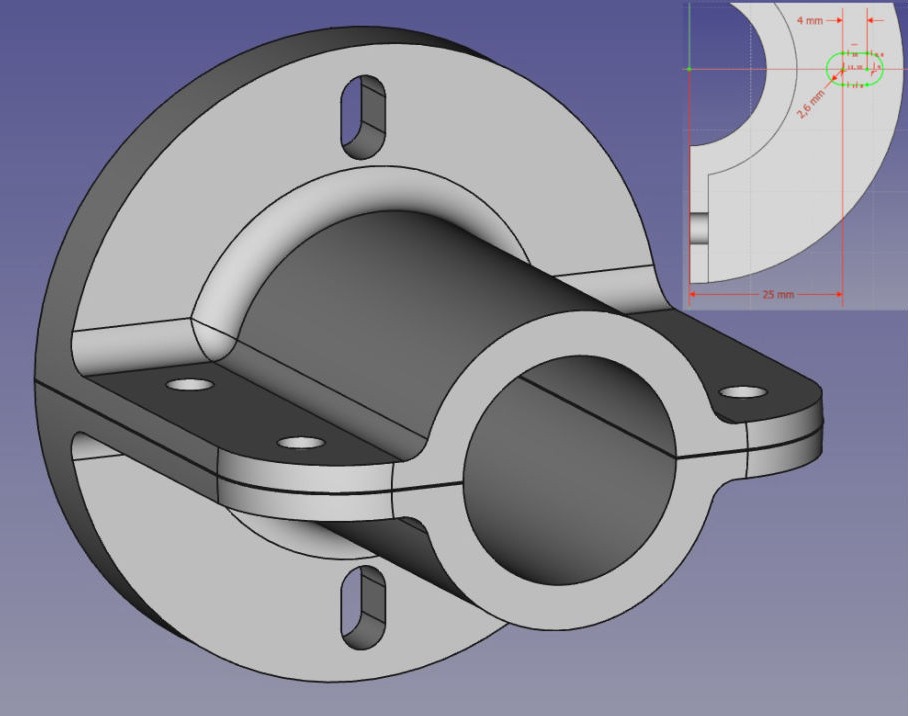

Construction of one half of a new bearing, followed by its duplication on the 3D-Printer.

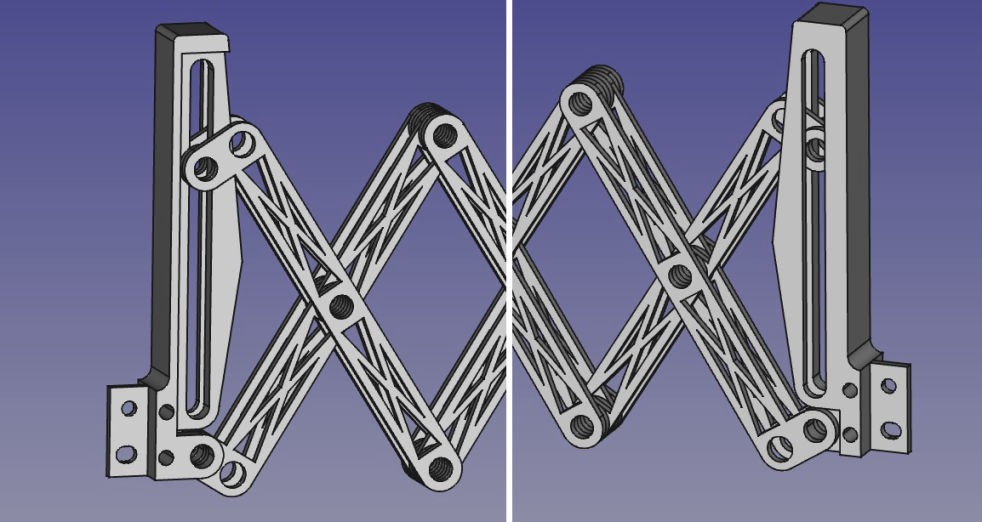

Wanted to use a microcontroller driven mechanical scissor-linear-drive, to move a kind of platform without using a fixed rail.
Doing an assembly with all the parts first, is very helpful to avoid hidden collisions on the final printouts.
When we shake hands - it's also the same. One fits another.

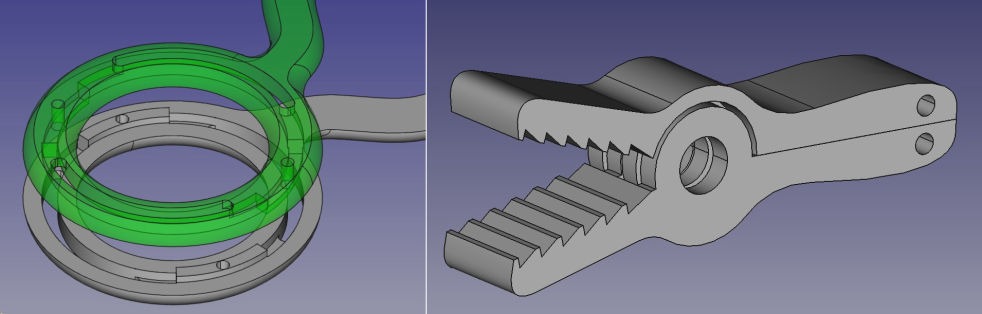

Save variations by combining 2 equal parts.

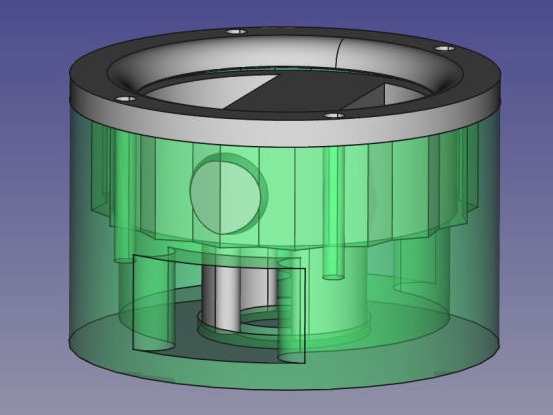

Need to wind up something like shoe-laces?
With an additional metal spring for the ratchet and some screws, you are ready to go.
How to develop lighter and cost effective constructions by using material only where it is needed?

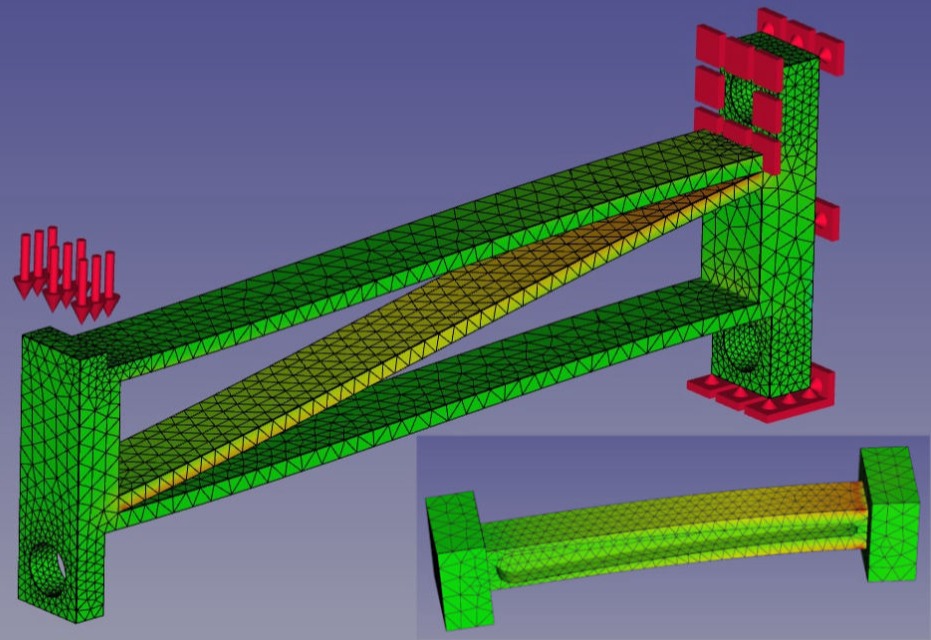

Use a FEM in multiple iterations to develop a more economical and reliable design, in attention to the expected forces that can occur in the final product.
